Industrial Electrical & Fire Safety Systems

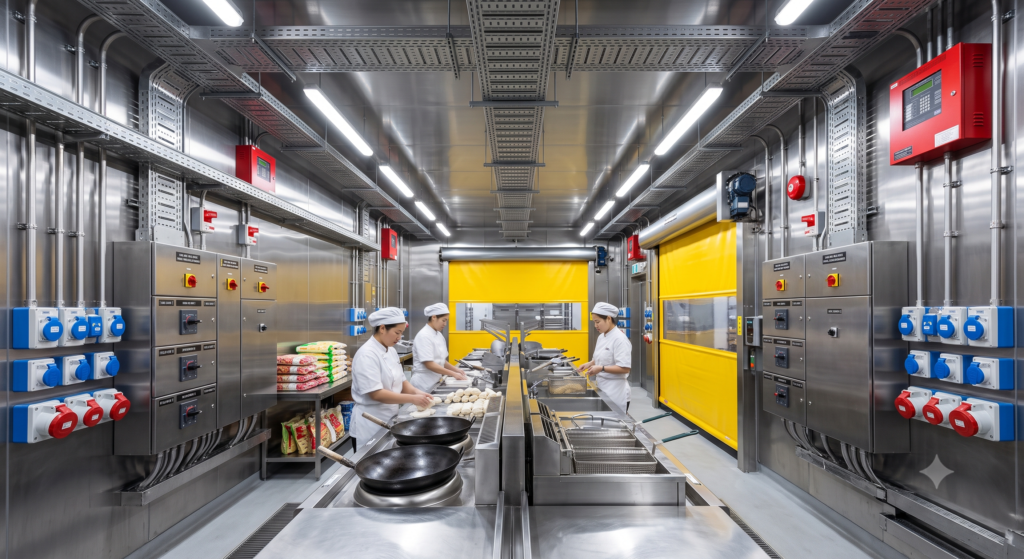

This high-capacity, industrial-scale Chinese food production kitchen showcases a state-of-the-art electrical distribution and fire safety infrastructure designed to withstand a rigorous 24/7 manufacturing environment. Built entirely to high industrial standards, the facility seamlessly integrates heavy-duty power supplies, robust circuit protection, and specialized safety systems within a clean, ultra-neat, and highly efficient footprint.

Heavy-Duty Power Distribution & Sub-Switchboards

At the core of the facility’s infrastructure are wall-mounted, IP65-rated stainless steel sub-distribution switchboards. Engineered with sloped tops to prevent water and dust accumulation during intensive washdown cycles, these enclosures house high-performance DIN-rail mounted Type C RCBOs. These breakers are specifically selected to handle the initial inductive motor inrush currents of automated processing lines, high-BTU electric wok ranges, and continuous conveyor fryers without nuisance tripping. Centralized, high-visibility rotary isolator switches ensure rapid localized power isolation for maintenance teams.

Watertight Sockets, Containment, and High-Level Lighting

To counter the omnipresent steam and humidity of large-scale food production, all electrical drops utilize heavy-duty, marine-grade 316 stainless steel cable trays and rigid conduits. Power delivery to individual appliances is achieved through wall-mounted, IP67-rated IEC 60309 switched interlock sockets. The color-coded red sockets supply dependable three-phase 415V power (32A/63A) to heavy thermal equipment like multi-deck steam cabinets and blast freezers, while the blue sockets provide single-phase 240V power (16A) for automated dumpling and spring roll forming machinery. Overhead, linear IP69K-rated LED vapor-tight luminaires provide high-intensity, glare-free daylight illumination. Constructed with shatterproof polycarbonate diffusers to eliminate food contamination risks, these fixtures easily withstand high-pressure, high-temperature hot water jet washdowns.

Advanced Fire Safety & Logistics Automation

Safety is anchored by a highly visible, surface-mounted red addressable Fire Alarm Control Panel (FACP). Tied into specialized rate-of-rise heat detectors, the system intelligently distinguishes between true fire hazards and dense cooking vapors, preventing costly false alarms. High-intensity red LED sounder/strobes provide unmistakable warning signals across the plant floor. This critical infrastructure is fully integrated with automated Ansul wet chemical suppression systems built directly into the extraction hoods, which instantly trip electrical supply lines upon activation. Finally, zoning boundaries feature automated high-speed fabric roll-up roller gates. Driven by high-torque industrial electric motors and managed via IP65 inverter control boxes, these fast-acting yellow PVC doors optimize climate control, support strict pest exclusion, and maintain seamless logistic workflows between processing zones.

中文描述：工业电气与消防安全系统概述

这座高产能、工业级的中央厨房展示了尖端的电气分配与消防安全基础设施，专为应对严苛的24/7连续生产环境而设计。该设施完全符合极高的工业标准，将重型电源供应、坚固的电路保护和专业安全系统无缝集成于一个整洁、高效且高度规范的空间内。

重型配电与不锈钢分动力配电箱

设施基础设施的核心是壁挂式、防护等级达 IP65 的不锈钢分动力配电箱（开关联锁控制柜）。其机柜顶部采用倾斜设计，有效防止在密集冲洗和清洁过程中积水或积尘。机壳内部整齐排列着高性能的导轨式 Type C RCBO（漏电断路器）。这些断路器专为承受自动化加工线、高功率电炒锅及连续传送带式炸锅的初始感应电流冲击而设计，可有效避免误跳闸。高能见度的红黄色旋转隔离开关确保了维护团队能够快速进行局部断电。

防水工业插座、线缆桥架与高空照明

为了应对大规模食品生产中无处不在的蒸汽与高湿度，所有电气下线均采用重型 316 级海洋级不锈钢电缆桥架和刚性导管进行集中走线。设备供电通过壁挂式、IP67 防护等级的 IEC 60309 工业开关联锁插座实现。红色插座提供稳定的三相 415V 电源（32A/63A），为多层蒸箱和速冻机等重型热工设备供电；蓝色插座则提供单相 240V 电源（16A），满足自动化饺子机和春卷成型机的用电需求。顶部悬挂着线性 IP69K 防护等级的 LED 防水防尘防腐三防灯具，提供高强度、无眩光的日光级照明。该灯具采用防碎聚碳酸酯扩散罩，彻底杜绝了玻璃碎片污染食品的风险，并可承受高压高温热水的直接喷淋冲洗。

先进的消防安全与物流自动化控制

整个车间的安全基石是一台高度显眼的红色壁挂式可寻址消防报警控制盘（FACP）。该系统与专业的差定温热感探测器相连，能够智能区分真实的火灾隐患与浓重的烹饪蒸汽，从而避免代价高昂的误报。高亮度红色 LED 声光报警器可在整个生产车间内提供清晰无误的警示信号。此外，该消防基础设施与排烟罩内集成的 Ansul 厨房灭火系统完全联动，一旦触发便会自动切断相关设备的电源供应。最后，各生产区域之间配有自动化工业高速柔性卷帘门。这些快速反应的黄色 PVC 门由高转矩工业电机驱动，并通过旁边的 IP65 变频控制箱进行精准控制，在保障严格的防虫防尘隔离的同时，实现了各加工区之间高效流畅的物流运转。
